Access Control System Accessories

The accessories for access control system such as wiegand reader, Electromagnetic Lock, LZ Bracket, U Bracket, Power Supply, Backup Battery, EM Proximity Card, EM Proximity Tag and etc also can be found over here.

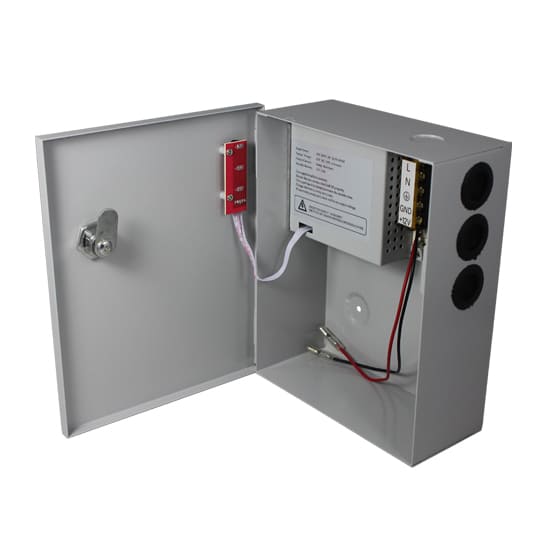

UPS Power Supply 12V, 3A
  • Input:  190-240V AC  @ 50-60Hz
  • Output voltage: 12V±15% DC
  • Output Current: 3Amp
  • Can connect to backup battery
  • Enclosure Dimensions: 203*163*74mm
  • Weight: 1.2kg

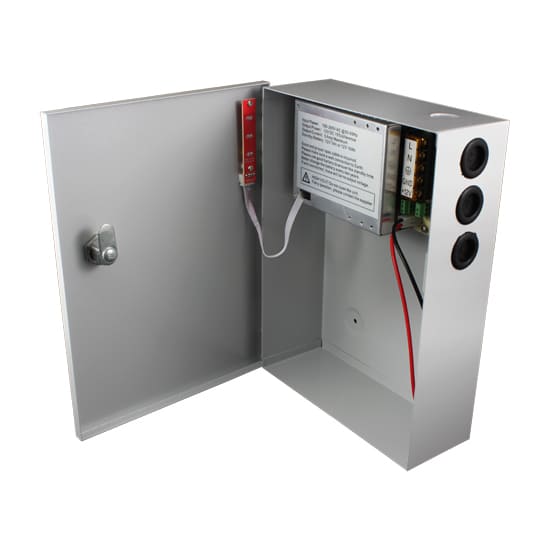

UPS Power Supply 12V, 5A
  • Input:  190-240V AC  @ 50-60Hz
  • Output voltage: 12V±15% DC
  • Output Current: 5Amp
  • Can connect to backup battery
  • Enclosure Dimensions: 265*195*75mm
  • Weight: 1.4kg
SLA Battery 12Vdc 7Ah
  • Norminal voltage: 12V
  • Capacity: 7Ah
  • Internal Resistance: 28m Ohm
  • Dimensions: 151*65*94mm
  • Weight: 2.1kg

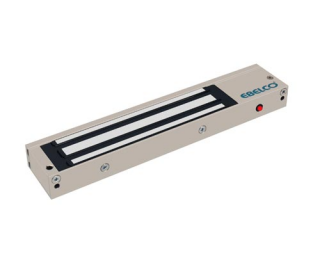

EML-600
  • Voltage Input : 12 VDC
  • Current Draw : 12V / 500mA
  • Holding Force : Up to 600 lbs (272 kg)
  • Anti-Rust Surface Treatment
  • Operating Temperature : 0~55° C ( 32~131° F)
  • Operating Humidity : 0~95%
  • Weight ( Magnet) : 1.1 kg (±1%)
  • Dimensions : Magnet – (L)250x(W)42x(T)25 mm
  • Dimensions : Armature – (L)180x(W)38x(T)11 mm

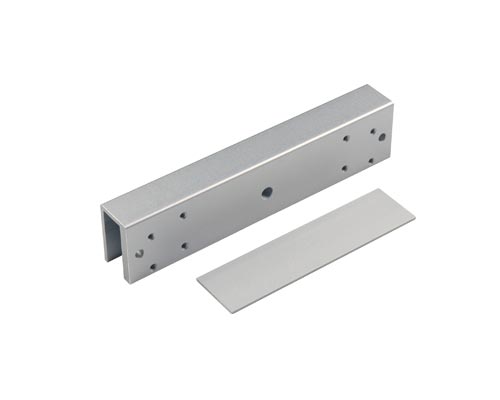

U-Bracket
  • For Frame-less Glass Door

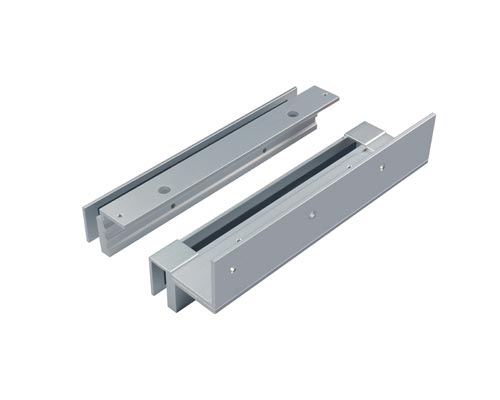

Double U-Bracket
  • Foe Frame-less Glass Door
  • In Swing Door

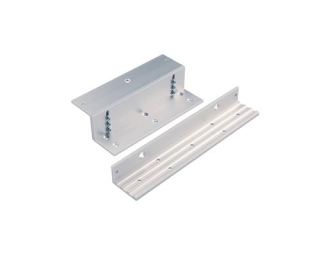

LZ-Bracket
  • For In Swing Door
