Turbo HD Analog Solution

With the recent and rather substantial surge in the need for up-to-date surveillance systems, installers often find themselves scrambling to patch together old technology with new products. Naturally, compatibility challenges pop up everywhere. When you need to update or upgrade an existing video surveillance system, finding the right gear is one of the biggest difficulties. Not only that, but removing old components and cables to install new equipment often makes a project more complex than simply starting from scratch. You need surveillance products that are widely compatible, simple to install, and cost effective. Hikvision provides just that – in our Turbo HD 3.0 Analog Solution.

Specially designed for analog users who want a high-definition surveillance system, Hikvision’s Turbo HD 3.0 Solution makes High Definition video possible without upgrading to IP cameras or even replacing existing cabling structure. Turbo HD 3.0 technology takes current equipment and powers it up to the next level.

Up to 5MP

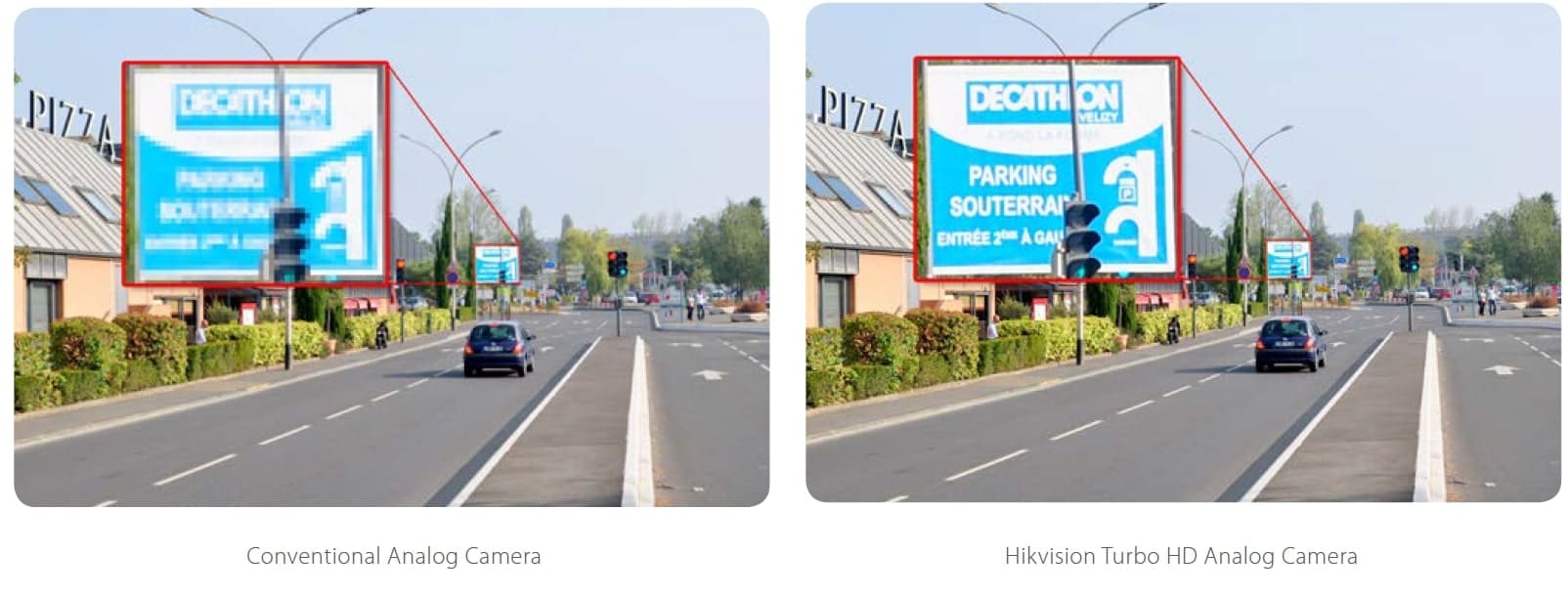

The Turbo HD Analog solution offers up to 5MP HDTVI Camera input and 4K UHD HDMI video output. The HD video output is not just based on the work of sensor, but the combination of the HD lens and Hikvision image signal processing (ISP). HD lenses with low distortion and large apertures enable better low-light performance, while Hikvision ISP provides videos with greater detail and vibrant color.

TVI

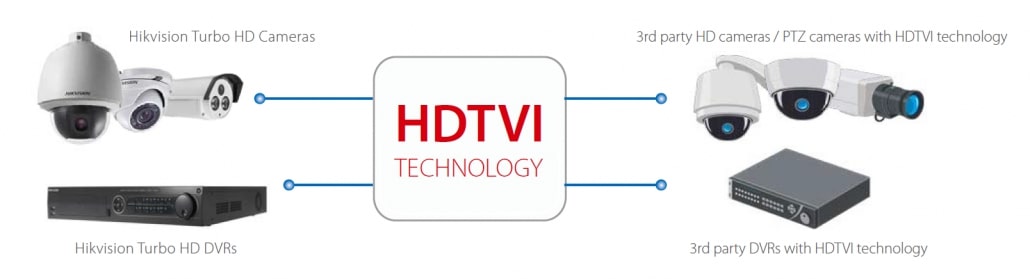

Open HDTVI Technology for 3rd Party Device Compatibility

By adopting HDTVI technology, the Turbo HD Analog solution offers seamless compatibility with various third party cameras, PTZ cameras and DVRs for better flexibility.

  • Hiikvision Turbo HD DVR supports third-party HD cameras / PTZ cameras which also utilize HDTVI technology. Meanwhile, the traditional SD analog cameras / PTZ cameras can also be connected to the system.
  • Hikvision Turbo HD analog cameras and PTZ cameras can access the 3rd party DVR products equipped with HDTVI technology.

TVI-1

Tribrid System (Turbo HD, IP and Analog) for Maximum Expansion Needs

The Hikvision Turbo HD DVR offers simultaneous connections to IP, analog, Turbo HD and third-party AHD cameras. Existing systems can be upgraded by simply replacing the current group of cameras and DVRs, and also by adding IP network cameras to cover new areas. Alternatively, users can keep existing SD cameras and only upgrade the necessary surveillance points to HD. The Turbo HD solution offers seamless compatibility with various third-party HDTVI compliant cameras and DVRs for superior flexibility.

Long Transmission Distance via Coaxial Cable

As any successful business grows, so does its need for extended security. Once a complete system has been installed, it’s not very long before it needs to expand. Using our technology, your customers can manage much larger projects, or extend existing ones, with high definition video while simultaneously increasing the transmission range. Users immediately find an Increase in transmission distances – even up to 2625 feet (800m) – using existing coaxial cable. The full value of the user’s investment comes through in HD 1080p resolution. That means upgrades in both quality and size at the same time.

Turbo HD DVR

HD 5MP 1U Turbo HD DVR
DS-7204/08HUHI-K1

• 4 / 8-ch video input, 4-ch audio input
• HD-TVI / CVI / AHD / CVBS / IP video signal supported
• H.264/H.264+/H.265+/H.265 video compression
• 12 fps recording at 5 MP resolution, 15 fps recording at 4 MP resolution
• HDMI output at 4K resolution (DS-7208HUHI-K1)
• Extended transmission distance over coax cable
• 1 SATA, 1 USB2.0 & 1 USB3.0(DS-7208HUHI-K1)

HD 5MP 1U Turbo HD DVR
DS-7204/08/16HUHI-K2

• 4 / 8 / 16-ch video input, 4-ch audio input
• HD-TVI / CVI / AHD / CVBS/IP video signal supported
• H.264/H.264+/H.265+/H.265 video compression
• 12 fps recording at 5 MP resolution, 15 fps recording at 4 MP resolution
• HDMI output at 4K resolution (DS-7208/16HUHI-K2)
• Extended transmission distance over coax cable
• 2 SATA, 1 USB2.0 & 1 USB3.0(DS-7208HUHI-K2,DS-7216HUHI-K2)

HD 1080P 1U Turbo HD DVR
DS-7204/08/16HQHI-K1

• 4 / 8 / 16-ch video input, 1-ch audio input
• HD-TVI / CVI / AHD / CVBS/IP video signal supported
• H.264/H.264+/H.265+/H.265 video compression
• Ch 1 / Ch 1–2 / Ch 1–4 supports up to 3 MP resolution,
• HDMI output at 4K resolution (DS-7216HQHI-K1)
• Extended transmission distance over coax cable
• 1 SATA, 1 USB2.0 & 1 USB3.0(DS-7216HQHI-K1)

HD 1080P 1U Turbo HD DVR
DS-7208/16HQHI-K2

• 8 / 16-ch video input, 1-ch audio input
• HD-TVI / CVI / AHD / CVBS/IP video signal supported
• H.264/H.264+/H.265+/H.265 video compression
• Ch 1-2 / Ch 1–4 supports up to 3 MP resolution,
• HDMI output at 4K resolution (DS-7216HQHI-K2)
• Extended transmission distance over coax cable
• 2 SATA, 1 USB2.0 & 1 USB3.0(DS-7216HQHI-K2)

1080P 1U Turbo HD DVR
DS-7204/08/16HQHI-F1
DS-7208/16HQHI-F2

• 4/8/16-ch HD TVI/AHD/analog cameras video&audio input
• HD-TVI/analog/AHD/IP camera quadruple hybrid
• H.264+ video compression
• Full channel@720P resolution real-time and 1080P non real-time
recording
• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Front panel and alarm I/O optional
• 1SATA(DS-7204/08/16HQHI-F1)/2 SATA(DS-7208/16HQHI-F2), 2 USB2.0

1080P 1U Turbo HD DVR
DS-7204/08HUHI-F1
DS-7204/08/16HUHI-F2

• 4/8/16-ch video & 1-ch audio input
• HDTVI/analog/AHD/IP camera quadruple hybrid
• 12fps recording at 5MP and 15fps recording at 3MP
• Full channel recording at 1080P resolution
• HDMI output at up to 1920×1080P resolution(DS-7204HUHI-F2/N), support
CVBS output
• 4K UHD output (DS-7208/16HUHI-F2/N)
• Long transmission distance over coax cable
• Front panel and alarm I/O optional
• 1SATA(DS-7204/08HUHI-F1)/2 SATA(DS-7204/08/16HUHI-F2), 2 USB2.0

1080P 1.5U Turbo HD DVR
DS-7316HQHI-F4

• 4/8/16-ch video & 4-ch audio input
• HDTVI/analog/AHD/IP camera quadruple hybrid
• Full channel recording at 1080P resolution
• HDMI output at up to 1920×1080P resolution(DS-7304/08HQHI-F4/N),
support CVBS output
• 4K UHD output (DS-7316HQHI-F4/N)
• Long transmission distance over coax cable
• 4 SATA, 1 eSATA, 3 USB2.0, gigabit NIC

Turbo HD Camera

HD 3MP EXIR Turret Camera
DS-2CE56F1T-ITM

• 3.0MP high-performance CMOS
• Turbo HD output, up to 3MP resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• EXIR technology, up to 20m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)

HD 3MP EXIR Turret Camera
DS-2CE16F1T-IT

• 3.0MP high-performance CMOS
• Turbo HD output, up to 3MP resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• EXIR technology, up to 20m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)

Full HD 1080P Indoor IR Dome
DS-2CE56D0T-IR

• 2.0MP high-performance CMOS
• Turbo HD output, up to 1080P resolution
• True Day/Night
• DNR, Smart IR
• Up to 20m IR distance
• IP66 weatherproof

HD 720P Indoor IR Dome
DS-2CE56C0T-IR

• 1.0MP high-performance CMOS
• Turbo HD output, up to 720P resolution
• True Day/Night
• DNR, Smart IR
• Up to 20m IR distance
• IP66 weatherproof

Full HD 1080P Outdoor IR Bullet
DS-2CE16D0T-IR

• 2.0MP high-performance CMOS
• Turbo HD output, up to 1080P resolution
• True Day/Night
• DNR, Smart IR
• Up to 20m IR distance
• IP66 weatherproof

HD 720P Outdoor IR Bullet
DS-2CE16C0T-IR

• 1.0MP high-performance CMOS
• Turbo HD output, up to 720P resolution
• True Day/Night
• DNR, Smart IR
• Up to 20m IR distance
• IP66 weatherproof

Full HD 1080P IR Dome
Vari-focal Lens
DS-2CE56D1T-VFIR3

• 2.0MP high-performance CMOS
• Turbo HD output, up to 1080P resolution
• 2.8-12mm Vari-focal Lens
• True Day/Night
• DNR, Smart IR
• Up to 40m IR distance
• IP66 weatherproof
• OSD Menu, UTC

HD 720P IR Dome
Vari-focal Lens
DS-2CE56C2T-VFIR3

• 1.0MP high-performance CMOS
• Turbo HD output, up to 1080P resolution
• 2.8-12mm Vari-focal Lens
• True Day/Night
• DNR, Smart IR
• Up to 40m IR distance
• IP66 weatherproof
• OSD Menu, UTC

Full HD 1080P IR Bullet
Vari-focal Lens
DS-2CE16D1T-VFIR3

• 2.0MP high-performance CMOS
• Turbo HD output, up to 1080P resolution
• 2.8-12mm Vari-focal Lens
• True Day/Night
• DNR, Smart IR
• Up to 40m IR distance
• IP66 weatherproof
• OSD Menu, UTC

HD 720P IR Bullet
Vari-focal Lens
DS-2CE16C2T-VFIR3

• 1.0MP high-performance CMOS
• Turbo HD output, up to 1080P resolution
• 2.8-12mm Vari-focal Lens
• True Day/Night
• DNR, Smart IR
• Up to 40m IR distance
• IP66 weatherproof
• OSD Menu, UTC
