The accessories for access control system such as wiegand reader, Electromagnetic Lock, LZ Bracket, U Bracket, Power Supply, Backup Battery, EM Proximity Card, EM Proximity Tag and etc also can be found over here.

Accessories

Wiegand Reader

VWR-110-E

VWR-110-E Wiegand Reader

  • WG 26/34, RS485/232
  • EM Proximity Card
  • Size: 80 x 43 x 16mm
  • Voltage DC5~16V
  • Current ≤50mA
  • Range 5~15cm

VWR-120-E

VWR-120-E Wiegand Reader

  • WG 26/34, RS485/232
  • EM Proximity Card
  • Size 122 x 46x 23mm
  • Voltage DC5~16V
  • Current ≤100mA
  • Range 5~15cm

VWR-320-E Wiegand Reader

  • WG 26/34, RS485/232
  • EM Proximity Card + Password
  • Size 108 x 88x 32mm
  • Voltage DC5~16V
  • Current ≤100mA
  • Range 5~15cm

Power Supply and Battery

PS-12V3A

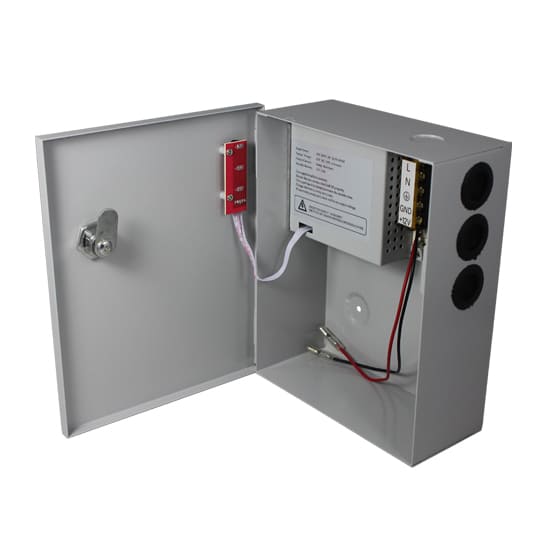

VPS-300 UPS Power Supply

  • Input:  190-240V AC  @ 50-60Hz
  • Output voltage: 12V±15% DC
  • Output Current: 3Amp
  • Can connect to backup battery
  • Enclosure Dimensions: 203*163*74mm
  • Weight: 1.2kg

PS-12V5A

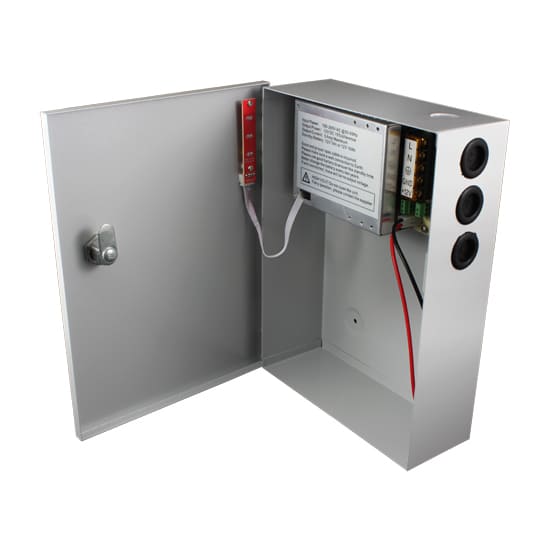

VPS-500 UPS Power Supply

  • Input:  190-240V AC  @ 50-60Hz
  • Output voltage: 12V±15% DC
  • Output Current: 5Amp
  • Can connect to backup battery
  • Enclosure Dimensions: 265*195*75mm
  • Weight: 1.4kg

Battery12V7Ah

Battery 12V 7Ah

  • Norminal voltage: 12V
  • Capacity: 7Ah
  • Internal Resistance: 28m Ohm
  • Dimensions: 151*65*94mm
  • Weight: 2.1kg

Electromagnetic Lock

EM600

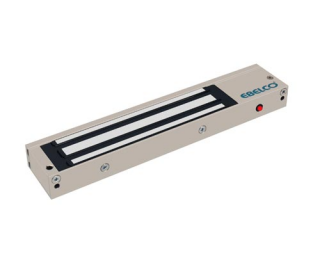

EML-600

  • Voltage Input : 12 VDC
  • Current Draw : 12V / 500mA
  • Holding Force : Up to 600 lbs (272 kg)
  • Anti-Rust Surface Treatment
  • Operating Temperature : 0~55° C ( 32~131° F)
  • Operating Humidity : 0~95%
  • Weight ( Magnet) : 1.1 kg (±1%)
  • Dimensions : Magnet – (L)250x(W)42x(T)25 mm
  • Dimensions : Armature – (L)180x(W)38x(T)11 mm

600D

EML-600D

  • Voltage Input : 12 VDC
  • Current Draw : 12V / 500mA
  • Holding Force : Up to 600 lbs (272 kg)
  • Anti-Rust Surface Treatment
  • Operating Temperature : 0~55° C ( 32~131° F)
  • Operating Humidity : 0~95%
  • Weight ( Magnet) : 2.2 kg (±1%)
  • Dimensions : Magnet – (L)500x(W)42x(T)25 mm
  • Dimensions : Armature – (L)180x(W)38x(T)11 mm
